Engineering, Design, Functional Parts and Processing Made in Germany |
|
|
Technical data - standard-constructions - |

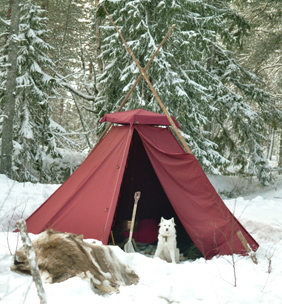

Kohta
|
Kohta Ø=4.64 m 15.21m2 space for up to 8 persons + 8 backbacks and campfire it consists of 4 KTB, 1 TCK can be distributed among 5 backbacks total weight Kohta: 11.4kg 4 KTB x 2.7kg = 10.8kg 1 TCK x 0.6kg = 0.6kg mean weight per person: 8 persons 11.4kg / 1 person 1.4kg 6 persons 11.4kg / 1 person 1.9kg 4 persons 11.4kg / 1 person 2.8kg |
|

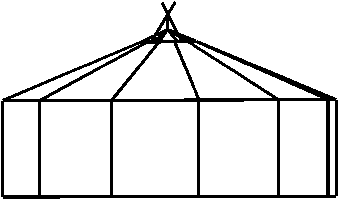

Kohju
|
Kohju Ø=max 6.86 m 35.28 m2 space for up to 24 persons + 24 backbacks and campfire it consists of 6 KTB, 6 WTD, 1 TCJ 2 WTS replace 1 WTD advantage WTS: a single WTS can be made a canopy |
|
Half-boat
|
Half-boat height 1.3 m length 2.6 m space for 1 to 2 persons it consists of 1 KTB |
|
Boat
|
Boat height 1.3 m length 5.2 m space for 2 to 4 persons it consists of 2 KTB |
|
Longboat
|
Longboat height 1.3 m length 7.0 m space for 2 to 6 persons it consists of 2 KTB, 1 WTD |
|
Technical data - tarps - |
Kohta-tarp - the Base tarp
|
Kohta-tarp KTB bottom 2 x 180 cm side 280 cm weight 2.7 kg |
|
Wall-tarp Double
|
Wall-tarp WTD height 180 cm width 2 x 180 cm weight 2.7 kg |
Wall-tarp Single
|
Wall-tarp WTS height 180 cm width 180 cm weight 1.6 kg |
|
Topcover Kohta
|
Topcover Kohta TCK width 140 cm length 140 cm weight 0.6 kg |
|
Topcover Kohju
|
Topcover Kohju TCJ perimeter 6 x 105 cm weight 1.7 kg |
|
Scandia-Tents, Ohlenrod 8, D-65627 Elbtal tel +49(0)6436/949735-8 fax +49(0)6436/949735-4 contact@scandia-tents.com www.scandia-tents.com |
